Metal Coil Drapery – An Art Choice of Lighting Up the Space

Metal coil drapery, a decorative mesh curtain made of intersecting metal spiral wires, is a stylish, flexible material for space decoration. We use high quality materials such as stainless steel, iron, copper and aluminum to provide a unique and modern look that adds unique charm to a space. The semi-translucent effect, texture and light reflection make this mesh curtain an ideal choice for space dividers, decorative walls and window curtains, decorative panels and ceilings.

A piece of silver metal coil drapery hanging vertically
Metal Coil Drapery
  • Specifications
  • Popular Configurations
  • Vertical & Horizontal
  • Finishes
  • Fullness
  • Installation
Specifications

Find the versatility of our metal coil drapery through various specifications.

  • Material: aluminum, stainless steel, brass, iron, high carbon steel
  • Wire diameter (a): 0.8 mm, 1.0 mm, 1.2 mm, 1.6 mm, 2.9 mm
  • Aperture (b): 3.5 mm, 5.5 mm, 6.5 mm, 10 mm
  • Open area: 40%–85%
  • Curtain height: ≤ 10 m
  • Curtain width: any width, can be customized.
  • Surface treatment: painted, anodized
Metal coil drapery and its mesh opening size details
Popular Configurations

Browse our popular configurations and find the right one for your project.

Popular
  • Wire diameter: 1.2 mm
  • Aperture: 6.5 mm
The front view of metal coil drapery with a diameter of 1.2 mm and an aperture of 6.5 mm The oblique view of metal coil drapery with a diameter of 1.2 mm and an aperture of 6.5 mm
The side view of metal coil drapery with a diameter of 1.2 mm and an aperture of 6.5 mm
Common
  • Wire diameter: 1.0 mm
  • Aperture: 5.5 mm
The front view of metal coil drapery with a diameter of 1.0 mm and an aperture of 5.5 mm The oblique view of metal coil drapery with a diameter of 1.0 mm and an aperture of 5.5 mm
The side view of metal coil drapery with a diameter of 1.0 mm and an aperture of 5.5 mm
High Privacy
  • Wire diameter: 0.5 mm
  • Aperture: 3.5 mm

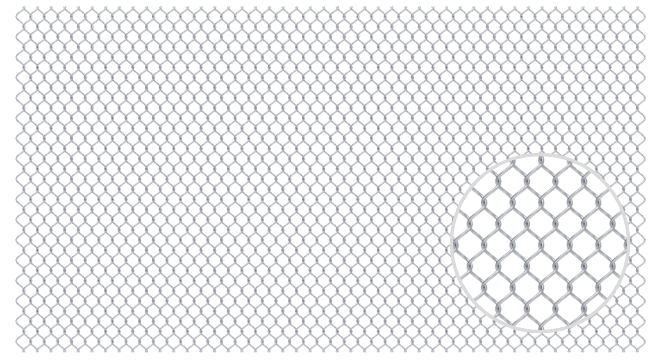

The front view of metal coil drapery with a diameter of 0.5 mm and an aperture of 3.5 mm The oblique view of metal coil drapery with a diameter of 0.5 mm and an aperture of 3.5 mm
The side view of metal coil drapery with a diameter of 0.5 mm and an aperture of 3.5 mm
Vertical & Horizontal

Different coil direction of metal coil drapery brings different decoration effects.

  • Vertical Coil Direction

    Present various kinds of fullness and create unique, dynamic visual effects.

    Metal coil drapery with vertical coils
  • Horizontal Coil Direction

    The curtain will not have folds and provide a simple, modern look.

    Metal coil drapery with horizontal coils
Finishes

Colorful choice allows you to create your unique metal coil drapery decorative curtain.

Color select:
  • The details of gloss metal coil drapery a-02-30
    Silver Gloss BG-A-02-30
  • The details of matte metal coil drapery b-1-67
    Silver Matte BG-B-1-67
  • The details of gloss metal coil drapery b-1-01
    Silver gray Gloss BG-B-1-01
  • The details of matte metal coil drapery b-2-30
    Silver gray Matte BG-B-2-30
  • The details of gloss metal coil drapery b-1-07
    Dark gray Gloss BG-B-1-07
  • The details of matte metal coil b-11-36
    Dark gray Matte BG-B-11-36
  • The details of gloss metal coil drapery b-11-04
    Raspberry Gloss BG-B-11-04

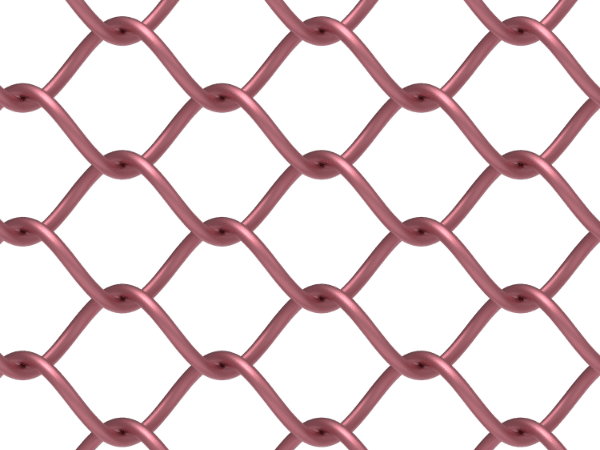

  • The details of matte metal coil drapery e-7-17
    Raspberry Matte BG-E-7-17
  • The details of gloss metal coil drapery e-2-09
    Pale pink Gloss BG-E-2-09
  • The details of gloss metal coil drapery b-2-02
    Sand Gloss BG-B-2-02
  • The details of matte metal coil drapery b-1-18
    Light brown Matte BG-B-1-18
  • The details of matte metal coil drapery b-11-10
    Gray brown Matte BG-B-11-10
  • The details of matte metal coil drapery b-1-11
    Gray gold Matte BG-B-1-11
  • The details of gloss metal coil drapery b-1-08
    Earth gold Gloss BG-B-1-08
  • The details of matte metal coil b-2-19
    Dirty orange Matte BG-B-2-19

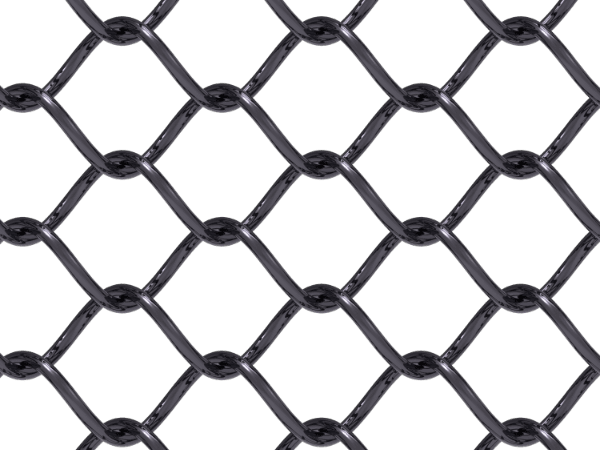

  • The details of gloss metal coil drapery a-01-30
    Black Gloss BG-A-01-30
  • The details of matte metal coil drapery e-2-30
    Black Matte BG-E-2-30
  • The details of gloss metal coil drapery e-6-06
    Blue Gloss BG-E-6-06
  • RAL card icon
    Custom color
  • The details of gloss metal coil drapery a-02-30
    Silver Gloss BG-A-02-30
  • The details of matte metal coil drapery b-1-67
    Silver Matte BG-B-1-67
  • The details of gloss metal coil drapery b-1-01
    Silver gray Gloss BG-B-1-01
  • The details of matte metal coil drapery b-2-30
    Silver gray Matte BG-B-2-30
  • The details of gloss metal coil drapery b-1-07
    Dark gray Gloss BG-B-1-07
  • The details of matte metal coil b-11-36
    Dark gray Matte BG-B-11-36
  • The details of gloss metal coil drapery b-11-04
    Raspberry Gloss BG-B-11-04
  • The details of matte metal coil drapery e-7-17
    Raspberry Matte BG-E-7-17
  • The details of gloss metal coil drapery e-2-09
    Pale pink Gloss BG-E-2-09
  • The details of gloss metal coil drapery b-2-02
    Sand Gloss BG-B-2-02
  • The details of matte metal coil drapery b-1-18
    Light brown Matte BG-B-1-18
  • The details of matte metal coil drapery b-11-10
    Gray brown Matte BG-B-11-10
  • The details of matte metal coil drapery b-1-11
    Gray gold Matte BG-B-1-11
  • The details of gloss metal coil drapery b-1-08
    Earth gold Gloss BG-B-1-08
  • The details of matte metal coil b-2-19
    Dirty orange Matte BG-B-2-19
  • The details of gloss metal coil drapery a-01-30
    Black Gloss BG-A-01-30
  • The details of matte metal coil drapery e-2-30
    Black Matte BG-E-2-30
  • The details of gloss metal coil drapery e-6-06
    Blue Gloss BG-E-6-06
  • RAL card icon
    Custom color
Fullness

The metal coil drapery with vertical coils presents a 15%–200% fullness effect to meet your various needs.

  • Metal coil drapery with 15% fullness

    15% Fullness

  • Metal coil drapery with 30% fullness

    30% Fullness

  • Metal coil drapery with 50% fullness

    50% Fullness

  • Metal coil drapery with 100% fullness

    100% Fullness

  • Metal coil drapery with 150% fullness

    150% Fullness

  • Metal coil drapery with 200% fullness

    200% Fullness

Installation

Flexible installation methods and detailed installation guidance (installation effect drawing, accessories drawing and installation guide videos) make your installation easier, more convenient and efficient.

Slide Track – Ceiling Mounting
Metal coil drapery slide track ceiling mounting
Slide Track – Wall Mounting
Metal coil drapery slide track wall mounting
U Channel
Metal coil drapery with 2 U channels for top & bottom installation
I Curved Track
Metal coil drapery Curved rail track installation
Rod & Hook
Metal coil drapery rod hook installation
Set Screw – Ceiling Mounting
Set screws are used to fix the metal coil drapery on the ceiling.
U Track & Hook
Hooks are used to fix the metal coil drapery onto the U track.

Kind reminder: When the metal coil drapery is used as a floor curtain, leave a gap of 2 cm from the ground at the bottom of the metal curtain to ensure the best effect.

Project

Metal coil drapery gives full play to its flexibility and creativity in different applications.

Blue metal coil drapery is hanging on the restaurant window.

Curtain

Multi-layer metal coil drapery is used for ceiling decoration.

Ceiling

Metal coil drapery is used in the furniture showroom as space divider.

Space divider

Hotel hall is decorated with gold columns and silver metal coil drapery.

Wall decoration

Made-to-Order

We can provide personalized solutions according to your needs and preferences.

  • 1
    Art & Function Blend the sense of art and practicality, and bring your space fantastic decorative effect and practical functionality.
  • 2
    Material & Color We provide various metal materials and finish options to allow you to choose the material and style most suitable for your project.
  • 3
    Flexible Sizes & Shapes According to your space requirements, we can provide flexible sizes and custom shapes to ensure the decorative metal curtain can perfectly match with your space.
  • 4
    Pattern Creation We use advanced technology to print the pattern on the metal curtain to maximize your creative imagination.
  • 5
    Professional Installation We provide professional installation support to ensure the metal curtain installation can be finished accurately and quickly.
